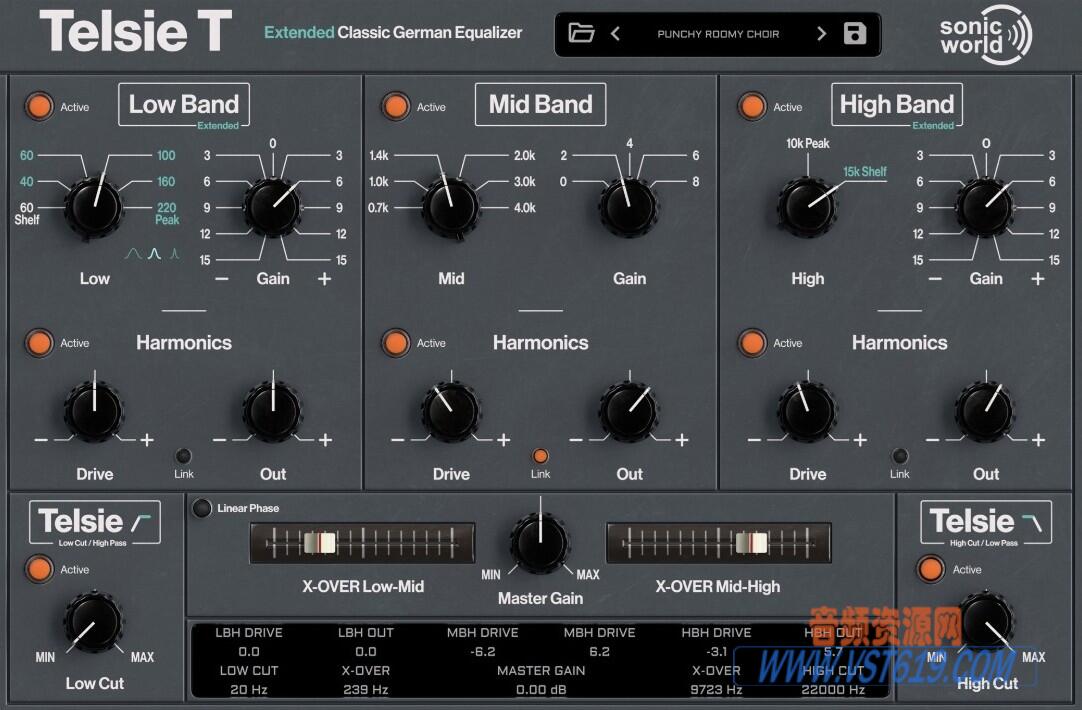

SonicWorld Plugins Telsie T v1.0.0_WIN-R2R

均衡器插件SonicWorld Plugins Telsie T
VST插件格式：
VST3/AAX

SonicWorld Telsie T是一款忠实建模自传奇W695广播均衡器的3段均衡器插件，以丝滑高频与紧实低频著称，并新增了交叉频率控制、谐波染色和线性相位等现代功能。

翻译：
SonicWorld Telsie T – 广播经典之作，带来丝滑精准的音质
SonicWorld Telsie T 是一款三段均衡器插件，其原型是 20 世纪 70 年代的传奇 W695 均衡器。W695 是一款标志性的模块，以其丝滑柔顺的高频和紧致、精准的低频而闻名。

W695 最初是为德国公共广播协会 (ARD) 的广播调音台设计的，它代表了当时专业音频领域新一代固态技术的风范。
与 V676 话筒前置放大器等知名模块一起，W695 成为了广播环境中值得信赖的工具。

Telsie T 忠实地捕捉了 W695 独特的音色特征，使其成为工程师们的“秘密武器”：丝滑细腻的高频和集中有力的低频，在提升清晰度的同时，避免了刺耳感。

SonicWorld 凭借数十年来维修和修复这些珍稀模拟设备的实践经验，为您带来 W695 的原汁原味音色——同时避免了老旧硬件的缺点，例如开关噪音、元件磨损或零件难以寻觅等问题。

Telsie T 针对现代制作进行了优化，将复古音色与更高的可靠性、灵活性以及与现代工作流程的无缝集成完美结合。

W695 和 Telsie T 的功能特点：
Telsie T 沿袭了原版硬件设计，配备音乐性极佳的三段均衡器，包含一个低频搁架式滤波器和两个峰值滤波器，可实现精准的音色塑造。低频部分在 60 Hz 处提供强劲的 ±15 dB 增益，而 10 kHz 的高频部分则增添了平滑的清晰度和光泽。

灵活的中频临场感滤波器提供六个可选频率，让您轻松塑造声音的清晰度，并使声音更加突出。

Telsie T 插件的额外优势：
扩展的低频控制：
超越原有设计，扩展低频塑形功能：
新增 40、60、100、160 和 220 Hz 的峰值滤波器频率

三种可选 Q 值设置：
宽频（1 个八度）
中频（0.5 个八度）
窄频（0.25 个八度）

这使得从柔和的音色增强到精确的低频雕琢，都能轻松实现——远远超越原有的 60 Hz 搁架式滤波器。

灵活的中频临场感：
中频可作为强大的临场感滤波器，频率范围为：
0.7、1、1.4、2、3 和 4 kHz
以 2 dB 为步长，最高可提升 +8 dB
完美提升任何音源的清晰度、解析力和临场感……

增强的高频塑形：
经典的 10 kHz 峰值滤波器，带来平滑明亮的高频
可选的 15 kHz 高频搁架滤波器，带来通透的高频
以 3 dB 为步长，最高可提升 ±15 dB

从微妙的光泽到开阔闪亮的高频，一切尽在掌控

谐波功能：
每个频段都包含一个独立的谐波级：
驱动：增加谐波的丰富度和饱和度
输出：补偿输出电平
链接开关：控制驱动和输出是否耦合

从微妙的温暖到激烈的音染，Telsie T 让您完全掌控音色，同时保持清晰度和音乐性。

低切/高通和高切/低通滤波器：
使用以下功能清洁和塑造您的信号：
低切（高通）和高切（低通）滤波器
可自由调节的截止频率
柔和的 -12 dB/倍频程斜率

非常适合消除隆隆声、抑制刺耳感，并在混音中创造空间感。

分频控制（低/中频段和中/高频段）：
在原版模拟 W695 中，低频段和高频段具有极其宽广的滤波曲线。因此，60 Hz 搁架式滤波器的调节会影响高达 2 kHz 左右的频率，而 10 kHz 峰值频段则会影响大约 200 Hz 开始的内容。

虽然这种宽广的交互是经典音色的一部分，但也可能导致对您不想影响的频率区域进行意外处理。

这正是分频控制发挥作用的地方。

它们允许您定义 Telsie T 中三个 EQ 频段相互作用的交叉点。默认设置为 500 Hz（低频/中频）和 7 kHz（中频/高频），在保持清晰的临场感的同时，提供了一个平衡且富有音乐性的起点。

通过调整这些交叉点，您可以改变每个频段在整个频谱中的表现，并根据不同的混音场景定制 EQ 响应。例如，您可以收紧低频频段，将能量集中在 220 Hz 以下，从而获得更强的人声基础；或者通过降低低频/中频交叉点来减少重叠。同样，提高中频/高频交叉点可以让您更精确地提升高频，而不会不必要地影响中低频内容。

这种级别的控制使您能够更轻松地在各种音源上获得精准的 EQ 效果。

我们建议您探索内置的预设，快速体验此功能的强大之处。

线性相位切换
Telsie T 的分频网络采用精心设计的非线性滤波器拓扑结构，旨在呈现自然悦耳的音乐特性。然而，在多轨录音（例如鼓组录音）中，这种设计可能会引入通道间的相位干扰。

为了解决这个问题，Telsie T 内置了线性相位模式，提供了一种具有更线性相位响应的替代滤波器行为。这有助于在复杂的多麦克风录音中保持相位一致性，并确保更透明、更可控的立体声像。

启用线性相位模式后，低切和高切滤波器将自动禁用，以保持相位对齐处理的完整性。

当需要最高的精度和相位一致性时，此模式是理想之选；而对于追求音乐性、模拟风格音色的用户，标准模式仍然是首选。

主增益和参数栏：
主增益控制用于补偿均衡处理或谐波饱和引起的任何电平变化。它确保在塑造声音的同时保持输出电平的一致性。单击此控制可将其立即重置为 0 dB，以便快速进行 A/B 对比。

参数栏让您一目了然地查看所有关键设置。它显示每个频段（低频谐波 (LBH)、中频谐波 (MBH) 和高频谐波 (HBH)）谐波级的当前值，以及低切和高切滤波器的位置、交叉频率和主增益电平。

这使您可以始终完全透明地精确控制整个信号路径。
————————————————————————————————————
原文：
SonicWorld Telsie T – Smooth Precision from a Broadcast Classic
The SonicWorld Telsie T is a 3-band equalizer plug-in modeled after the legendary W695 equalizer from the 1970s—an iconic module celebrated for its silky smooth high frequencies and tight, controlled low end.

Originally designed for broadcast consoles built for the Association of German Public Broadcasters (ARD), the W695 was part of a new generation of solid-state technology that defined professional audio in its era.
Alongside renowned modules like the V676 microphone preamp, the W695 became a trusted tool in broadcast environments.

Telsie T faithfully captures the unmistakable sonic signature that continues to make the original hardware a “secret weapon” for engineers: smooth, refined highs and focused bass that enhance clarity without harshness.

Built on decades of hands-on experience servicing and restoring these rare analog units, SonicWorld brings you the authentic character of the W695—without the drawbacks of aging hardware such as noisy switches, worn components, or hard-to-source parts.

Enhanced for modern production, Telsie T combines vintage tone with improved reliability, flexibility, and seamless integration into today’s workflows.

The features of the W695 and Telsie T:
Telsie T follows the original hardware design with a musical 3-band EQ, featuring a low-shelf and two peak filters for precise tonal shaping. The low band delivers powerful ±15 dB at 60 Hz, while the high band at 10 kHz adds smooth clarity and shine.

A flexible mid-band presence filter with six selectable frequencies lets you shape definition and bring your sound forward with ease.

The additional benefits of the Telsie T plug-in:
Extended Low-End Control:
Go beyond the original design with expanded low-frequency shaping:
Additional peak filter frequencies at 40, 60, 100, 160, and 220 Hz

Three selectable Q settings:
Broad (1 octave)
Medium (0.5 octave)
Narrow (0.25 octave)

This allows anything from gentle tonal enhancement to precise low-end sculpting—far beyond the original 60 Hz shelf.

Flexible Mid-Band Presence:
The mid band acts as a powerful presence filter with:
Frequencies at 0.7, 1, 1.4, 2, 3, and 4 kHz
Up to +8 dB boost in 2 dB steps

Perfect for adding clarity, definition, and forwardness to any source…

Enhanced High-Frequency Shaping:
Classic 10 kHz peak filter for smooth brilliance
Optional 15 kHz high-shelf filter for airy top-end
Up to ±15 dB gain in 3 dB steps

Dial in everything from subtle sheen to open, sparkling highs

Harmonics function:
Each band includes a dedicated harmonics stage:
Drive: Adds harmonic richness and saturation
Out: Compensates output level
Link switch: Controls whether Drive and Out are coupled

From subtle warmth to aggressive coloration, Telsie T gives you full control—while preserving clarity and musicality.

Low Cut/ High Pass and High Cut/Low Pass Filter:
Clean and shape your signal with:
Low Cut (High Pass) and High Cut (Low Pass) filters
Freely adjustable cutoff frequencies
Gentle –12 dB/octave slope

Perfect for removing rumble, taming harshness, and creating space in a mix.

X-Over Control (Low/Mid & Mid/High Bands):
In the original analog W695, the low and high bands feature extremely wide filter curves. As a result, adjustments at the 60 Hz shelf can influence frequencies up to around 2 kHz, while the 10 kHz peak band already affects content starting from approximately 200 Hz.

While this broad interaction is part of the classic sound, it can also lead to unintended processing of frequency areas that you may not want to affect.

This is exactly where the X-Over controls come into play.

They allow you to define the crossover points at which the three EQ bands interact within Telsie T. The default settings are 500 Hz (Low/Mid) and 7 kHz (Mid/High), providing a balanced and musical starting point while keeping the presence range clearly defined.

By adjusting these crossover points, you can reshape how each band behaves across the spectrum and tailor the EQ response to different mixing situations. For example, you can tighten the low band to focus energy below 220 Hz for a stronger vocal foundation, or reduce overlap by lowering the Low/Mid crossover. Similarly, raising the Mid/High crossover allows you to boost high frequencies more precisely without unnecessarily affecting lower midrange content.

This level of control makes it significantly easier to achieve focused, intentional EQ results across a wide range of sources.

We recommend exploring the included presets to quickly experience how powerful this feature can be.

Linear Phase Switch
The Telsie T uses a carefully designed nonlinear filter topology for its crossover network, chosen for its musical and natural sound character. However, in multitrack situations—such as drum recordings—this design can introduce phase interactions between channels.

To address this, Telsie T includes a Linear Phase mode, which provides an alternative filter behavior with a more phase-linear response. This helps maintain phase coherence across complex, multi-microphone recordings and ensures a more transparent and controlled stereo image.

When Linear Phase is activated, the Low Cut and High Cut filters are automatically disabled to preserve the integrity of the phase-aligned processing.

This mode is ideal when maximum accuracy and phase consistency are required, while the standard mode remains the preferred choice for musical, analog-style coloration.

Master Gain and Parameter Bar:
The Master Gain control is used to compensate for any level changes introduced by EQ processing or harmonic saturation. It ensures consistent output levels while shaping your sound. Clicking the control resets it instantly to 0 dB for quick A/B comparison.

The Parameter Bar provides a clear overview of all key settings at a glance. It displays the current values of the harmonic stages for each band—LBH (Low Band Harmonics), MBH (Mid Band Harmonics), and HBH (High Band Harmonics)—as well as the Low Cut and High Cut filter positions, both crossover frequencies, and the Master Gain level.

This gives you full transparency and precise control over the entire signal path at all times.
