Lemur Audio ESTER v1.0.1_WIN-R2R（2026.09.17更新）

均衡器插件Lemur Audio ESTER
VST插件格式：
VST3/AAX

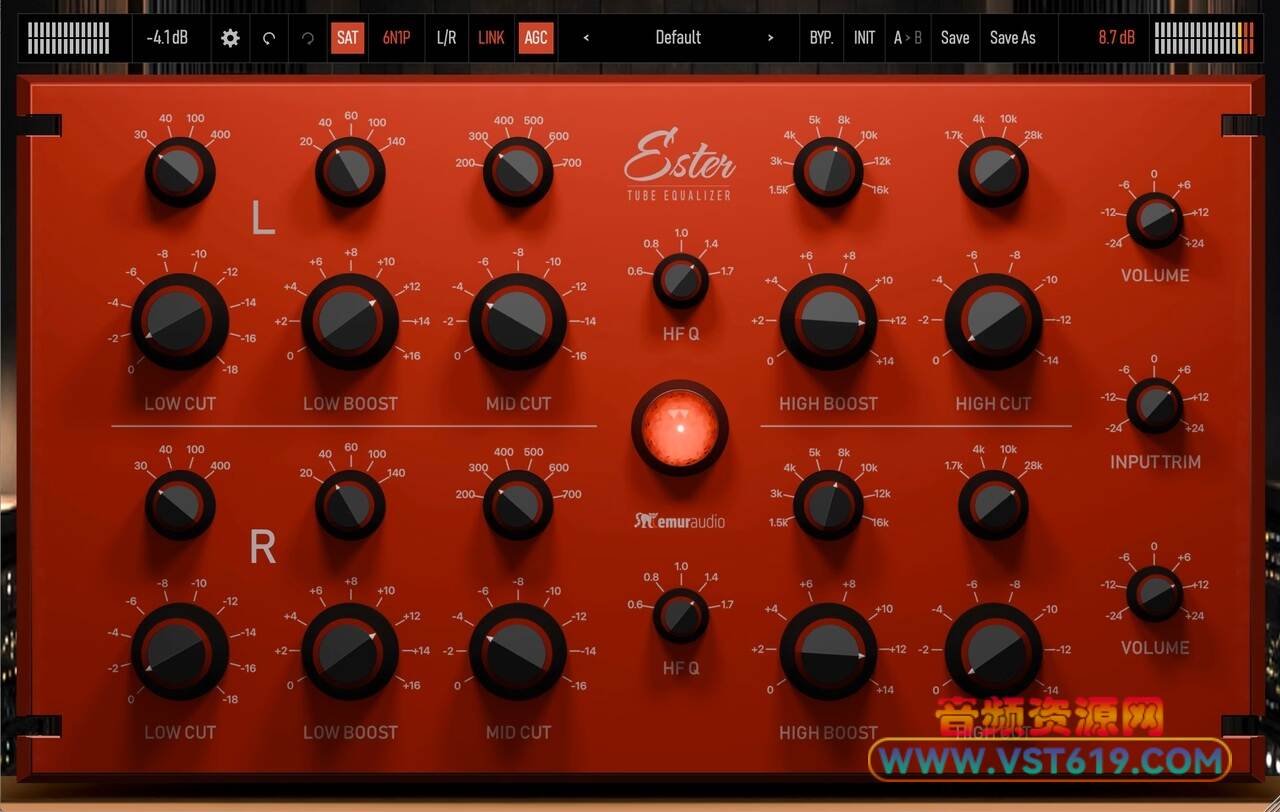

Lemur Audio ESTER是无源电子管均衡插件，前置电子管级可选用6072A/6N1P两种胆管，染色与EQ调节相互独立。搭载五段交互滤波，支持L‑R与M‑S处理，带来温暖谐波密度，适合混音、总线及母带音色塑形。

翻译：
Ester 电子管均衡器
原版设备在信号输入和输出端各设有一个电子管，中间夹着无源均衡电路。ESTER 将原版设备中电子管过载时的特性——包括声音密度、谐波成分，以及受力驱动时声音的动态变化与回弹感——整合到了均衡器前端的一个电子管级中（类似于前置放大器），并忠实还原了原版设备历史上所使用的两种电子管的音色。

这种布局是经过深思熟虑的。如果将电子管置于均衡器之后，每次提升频段都会加剧电子管的过载程度，导致你在调节频段时不得不反复调整饱和度。将其置于前端，音色渲染与频率调节便成了两个独立的步骤：先通过 INPUT TRIM（输入微调）设定驱动量，随后即可自由调节均衡。饱和度保持不变，均衡曲线也维持原样，同时均衡器还能对谐波进行塑形——例如，使用 HIGH CUT（高频切除）可以柔化过载带来的尖锐边缘，而 LOW CUT（低频切除）则能理顺过载产生的厚重低频。

通道排之间的指示灯是该级的专属电平表，用于显示实际产生的谐波量。SAT（饱和）开关可一键旁通该级电路，且不影响其他参数设置。

两款电子管，两段历史音色
顶部栏的切换选项可在两种音色各异、驱动特性不同的电子管之间进行切换。6072A 电子管在 INPUT TRIM 调节初期便开始产生效应，并随着旋钮转动逐渐增加声音厚度；而 6N1P 电子管在调节前期保持较干净的音色，但在旋钮行程后半段会迅速进入过载状态，音色更具冲击力。两者的响度经过匹配，因此切换时只会改变音色特征，而不会改变音量大小。新加载的插件默认使用 6072A 电子管。

INPUT TRIM —— 掌控电子管特性的核心旋钮
INPUT TRIM 决定了进入电子管的信号电平（调节范围为刻度标示的 ±24 dB），这一个旋钮便决定了饱和度的所有细节——因为在电子管电路中，谐波的增加与电子管特有的圆润音色渲染往往是密不可分的。该级电路会自动补偿输出电平，因此调节 INPUT TRIM 改变的是声音密度与音色，而非音量；这使得在进行 A/B 对比（与旁通模式对比）时，能够专注于音色特征的差异，而不受响度变化的影响。

无源电子管均衡器
每个通道包含五个滤波器——LOW CUT（低频切除）、LOW BOOST（低频提升）、MID CUT（中频衰减）、HIGH BOOST（高频提升）和 HIGH CUT（高频切除）——每个滤波器均配有独立的刻度标尺。频率选择器采用真正的旋转开关，档位定位精准，绝不会停留在档位之间；这意味着你钟爱的设置可以在每次使用时完美复现。其滤波曲线设计宽广而平缓：它们旨在微调混音的整体平衡，而非进行剧烈的频段切割。

五组滤波器，单一网络架构
做好单个滤波器只是任务的一半。在无源均衡器中，各频段共用同一个电路网络，因此同时启用五个滤波器时，最终的曲线并非五个独立曲线的简单叠加——调整其中一个，其他频段也会随之联动；这种相互作用正是此类均衡器独特音色的核心所在。ESTER 完美兼顾了这两点：无论是单个滤波器，还是五者协同形成的整体曲线，都忠实地还原了原始设计。最终呈现的曲线是整个设备（而非仅仅是无源网络）的综合特性——其中也包含了放大器与变压器带来的细腻线性​​印记——从而赋予了 ESTER 独一无二的音色。

低频段：双向调节，相辅相成
LOW BOOST（低频提升）可在 20、40、60、100 或 140 Hz 处提供最高 +16 dB 的增益。LOW CUT（低频切除）则可在 30、40、100 或 400 Hz 处进行最高 -18 dB 的衰减。这两个控制功能作用于同一个无源网络，而经典的用法是将它们结合起来：在同一频段区域同时进行提升与切除，既能获得扎实的低频厚度，又能消除上方频段的浑浊感。这是单一搁架式（shelf）滤波器无法实现的。

MID CUT（中频切除）——为其他元素留出空间
可在 200、300、400、500、600 或 700 Hz 处进行最高 -16 dB 的衰减。由于曲线设计宽广，即便衰减 2 到 3 dB，也能让整个中频段变得通透开阔，而不会造成频段缺失（“挖坑”效应）。若配合 LOW BOOST 使用，便能实现此类均衡器最经典的调音手法：既保留了底部的厚实感，又去除了紧邻其上的浑浊中低频成分。

打造“空气感”，Q值随心设定
HIGH BOOST（高频提升）功能可在 1.5 kHz 至 16 kHz 范围内的八个档位上提供最高 +14 dB 的增益；HF Q（高频 Q 值）参数用于调节提升频段的宽度——设为 0.6 可获得宽广、通透的“空气感”光泽，设为 1.7 则能将能量精准聚焦于特定频点。配合 HIGH CUT（高频切除）功能，可在 1.7、4、10 或 28 kHz 频点处进行最高 −14 dB 的衰减，让您在增加“空气感”的同时又能消除刺耳感。

双通道设计，各配独立音量控制
两路完整且独立的通道——每路均配备五组滤波器、独立的 HF Q 设置，以及位于信号链末端的独立音量控制（调节范围 ±24 dB）。L/R 模式下，它构成真正的双单声道（dual-mono）均衡器；M/S 模式则将这两路信号转换为“中置（Mid）”与“侧置（Side）”信号，使您能够在不影响人声的前提下提升侧向声场的“空气感”，或在不收窄声场的前提下增强中置信号的结像力。在 M/S 模式下，两路音量控制将协同作用，充当声场宽度调节器。LINK（联动）功能可将两路设置关联，以便进行对称调节或统一操作。
————————————————————————————————————
原文：
Ester Tube Equalizer.
The original runs the signal through a valve on the way in and another on the way out, with the passive equalizer between them. ESTER puts what those valves do when you drive them — the density, the harmonics, the way the sound shifts under a push and takes a moment to come back — into one tube stage in front of the equalizer, like a preamp, faithfully for both tubes the original was historically built with.

That placement is deliberate. With the valve after the EQ, every boost would also drive it harder, and you would be chasing the saturation each time you touched a band. In front, colour and tone become two separate decisions: set the drive once with INPUT TRIM, then equalize freely. The amount of saturation stays where you put it, the curves stay exactly where you set them, and the EQ gets to shape the harmonics too — HIGH CUT can smooth the edge a hard drive adds, LOW CUT can tidy the weight it builds.

The lamp between the channel rows is the stage’s own meter, reading the harmonic product actually being generated. SAT takes the whole stage out without disturbing a setting.

Two tubes, two chapters of history
The cell in the top bar switches the stage between two tubes, voiced separately, and they drive differently. 6072A starts early and thickens gradually across the whole travel of INPUT TRIM. 6N1P stays clean for longer, then breaks up quickly and hits harder in the upper half. Both are matched in loudness, so switching changes the character, not the volume. A fresh instance opens on 6072A.

INPUT TRIM — one knob for the whole tube
INPUT TRIM sets the level arriving at the valve across the full ±24 dB its scale is engraved for, and that one knob decides everything about the saturation — on a valve stage, more harmonics and more of the tube’s own rounding were never two separate things. The stage compensates its own through-level, so INPUT TRIM buys density and colour instead of volume, which is what lets an A/B against bypass compare character rather than loudness.

A passive tube equalizer
Five filters per channel — LOW CUT, LOW BOOST, MID CUT, HIGH BOOST and HIGH CUT — each on its own engraved scale. The frequency selectors are real rotary switches that land on their engraved stops and nowhere between them, so a setting you love comes back exactly, session after session. The curves are broad and gentle by design: they lean the balance of a mix rather than carve it.

Five filters, one network
Getting one filter right is the easy half. In a passive equalizer the sections share a network, so the curve you get from all five at once is not the sum of the five — move one and the others move with it, and that interaction is most of what this kind of equalizer sounds like. ESTER keeps both: each filter on its own, and the whole curve the five of them make together, follow the original closely. And it is the curve of the whole unit, not of the passive network alone — the quiet, linear imprint of its amplifiers and transformers is part of it — and the voice that comes out of it is ESTER’s own.

The low end, both ways at once
LOW BOOST lifts up to +16 dB at 20, 40, 60, 100 or 140 Hz. LOW CUT takes up to −18 dB back out at 30, 40, 100 or 400 Hz. They are two controls over one passive network, and the classic move is to use them together: boost and cut around the same region and you get weight underneath with the mud pulled out above it. No single shelf will do that.

MID CUT — room for everything else
Up to −16 dB out at 200, 300, 400, 500, 600 or 700 Hz. The curve is broad, so two or three dB opens the whole midrange instead of leaving a hole in it — and set against LOW BOOST it is the oldest move this kind of equalizer has: weight underneath, the box taken out just above it.

Air on top, with a Q you choose
HIGH BOOST reaches +14 dB across an eight-position grid from 1.5 kHz to 16 kHz, and HF Q sets how wide that lift is — 0.6 for a broad, open sheen, 1.7 to put the energy exactly where you want it. HIGH CUT then trims up to −14 dB at 1.7, 4, 10 or 28 kHz, so you can add air and take off edge in the same gesture.

Two channels, and each one ends in its own VOLUME
Two complete, independent channels — each with its own five filters, its own HF Q, and its own VOLUME over ±24 dB after everything else. L/R gives you a true dual-mono equalizer; M/S turns the same two rows into centre and sides, so you can lift the air on the sides without touching the vocal, or firm up the middle without narrowing anything. In M/S those two VOLUME trims become a width control. LINK gangs the rows when the move should be symmetrical and made once.
